SR6 series
Features
This series PTC thermistor, with rated working voltage of 6V and rated maintenance current of 0.75A-2.5A, is advantaged by small room temperature resistance, high reliability and convenient installation, the use available in an environment at 60DEG C or above, and automatic restoration and reuse after faults in circuits are eliminated.
contact now
Product Details
SR6 Series PTC Thermistor
This series PTC thermistor, with rated working voltage of 6V and rated maintenance current of 0.75A-2.5A, is advantaged by small room temperature resistance, high reliability and convenient installation, the use available in an environment at 60DEG C or above, and automatic restoration and reuse after faults in circuits are eliminated.

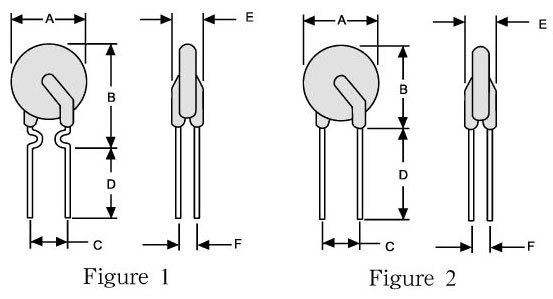

★ Product shape

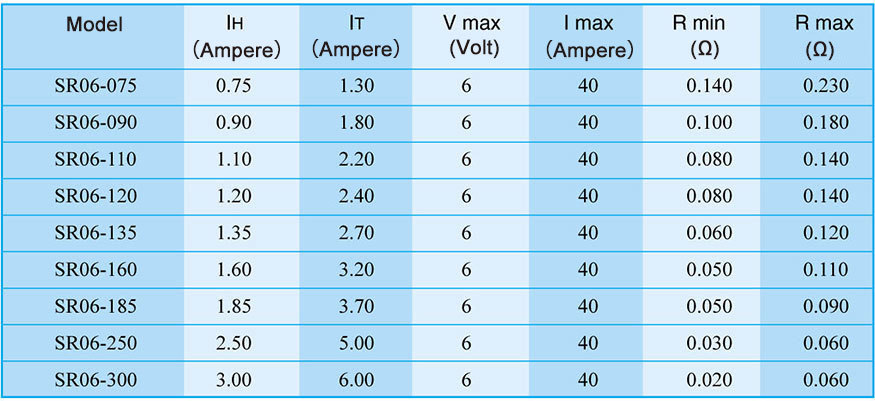

★ Electric Performance (at 20 DEG C):

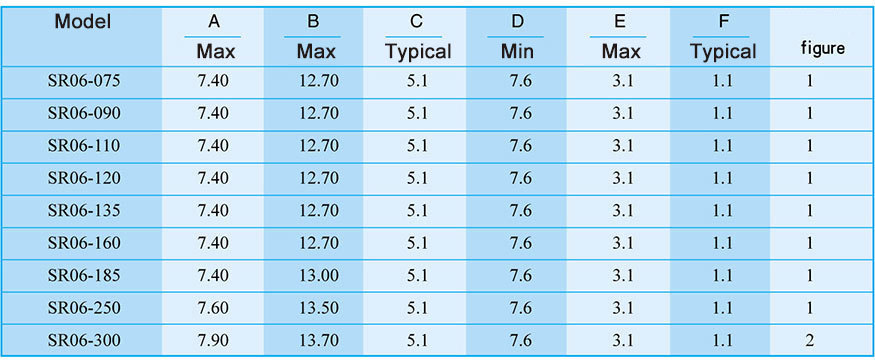

★ Component size（mm）
★ Electrode Lead and Encapsulating Material
| Specification | Lead material | Diameter（mm） | Encapsulation material |
| SR6-075～SR6-250 | Nickel-plated steel wire | 0.50 | Flame retardant epoxy resin |
| SR6-300 | Nickel-plated steel wire | 0.80 | Flame retardant epoxy resin |
