SR16 Series PTC Thermistor
SR16 series PTC thermistor, with rated working voltage of 16V and rated maintenance current of 3.0A-14.0A, is applicable to circuits with low rated working voltage and larger working current. Compared with SR60 and SR30, this series thermistor has the advantages of smaller volume and resistance, larger maintenance current and relatively shorter actuation time, widely used in lamp, computer interface, mouse, keyboard, miniature motor, transformer, CPU, fire alarm and safety protection system, satellite TV receiving system and other test and measuring devices.
★ Product shape

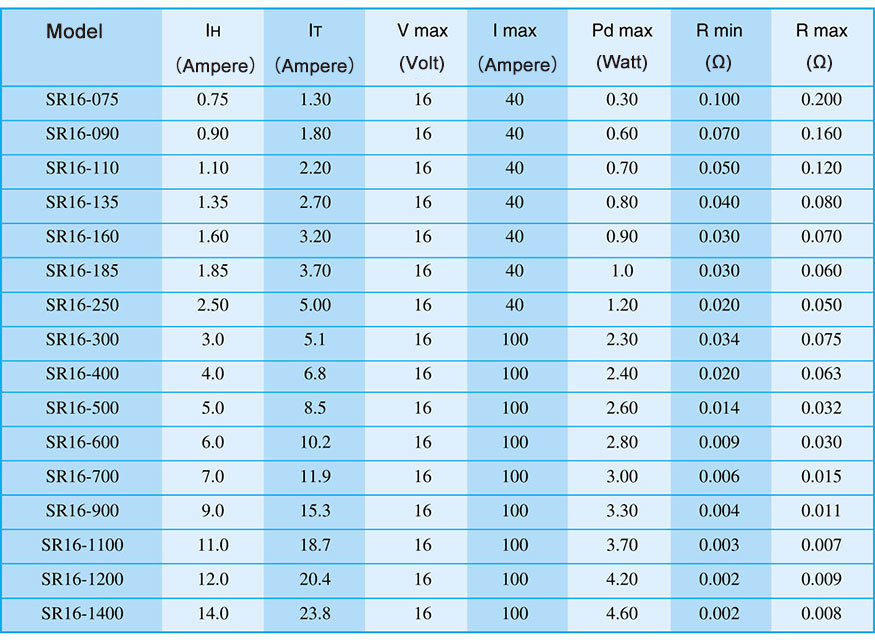

★ Electric Performance (at 20 DEG C)

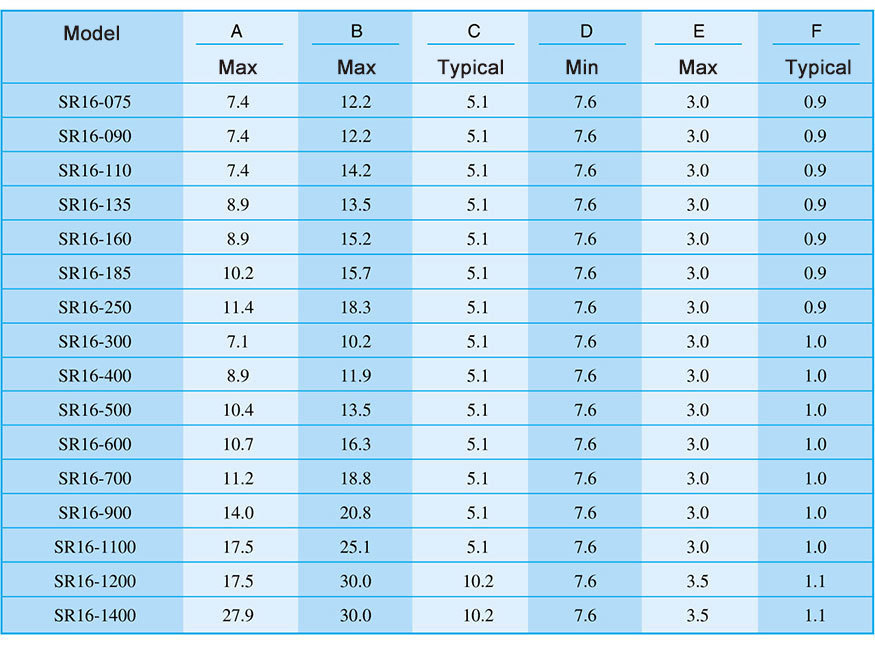

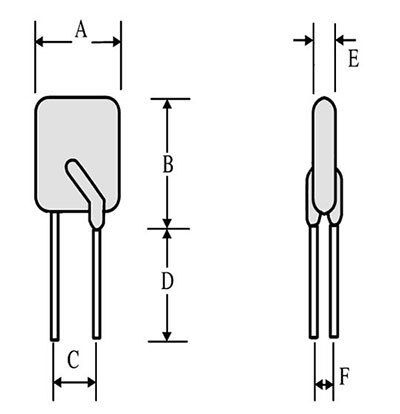

★ Component size（mm）

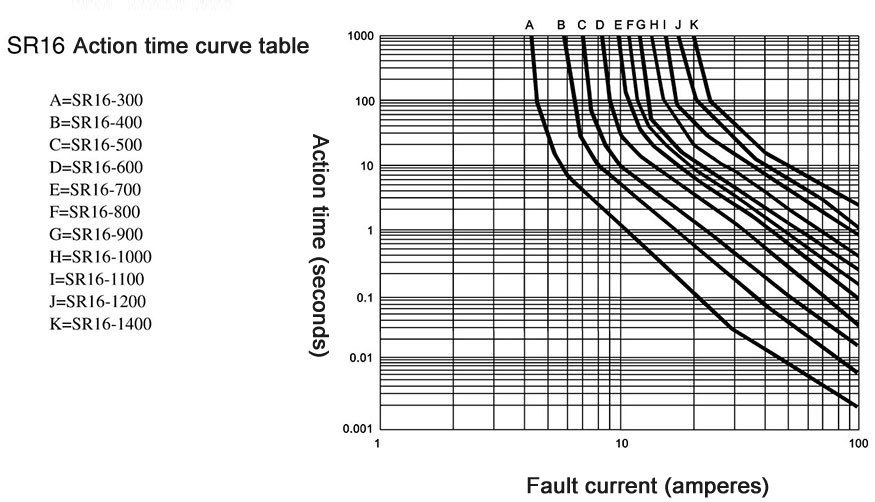

★ Action time curve table
★ Electrode Lead and Encapsulating Material
| Shape | Lead Material | Diameter （mm） | Encapsulating Material |
| SR16-075～SR16-250 | Nickel-plated Steel Wire | 0.5 | Flame Retarded Epoxy Resin |
| SR16-300～SR16-1100 | Nickel-plated Steel Wire | 0.8 | Flame Retarded Epoxy Resin |
| SR16-1200～SR16-1400 | Nickel-plated Steel Wire | 1 | Flame Retarded Epoxy Resin |
| Note: Flame-retardant epoxy resin, in line with UL94V-0 requirements. | |||
