SR130 series
Features
This series PTC thermistor has rated working voltage of 130V and rated maintenance current of 0.10A-3.00A. As an over-current protector specially designed for electronic rectifier, it is advantaged by small room temperature resistance, high reliability, and convenient installation, the use available in an environment at 60DEG C or above, and automatic restoration and reuse after faults in circuits are eliminated.
contact now
Product Details
SR130 Series PTC Thermistor
This series PTC thermistor has rated working voltage of 130V and rated maintenance current of 0.10A-3.00A. As an over-current protector specially designed for electronic rectifier, it is advantaged by small room temperature resistance, high reliability, and convenient installation, the use available in an environment at 60DEG C or above, and automatic restoration and reuse after faults in circuits are eliminated.
★ Product Shape

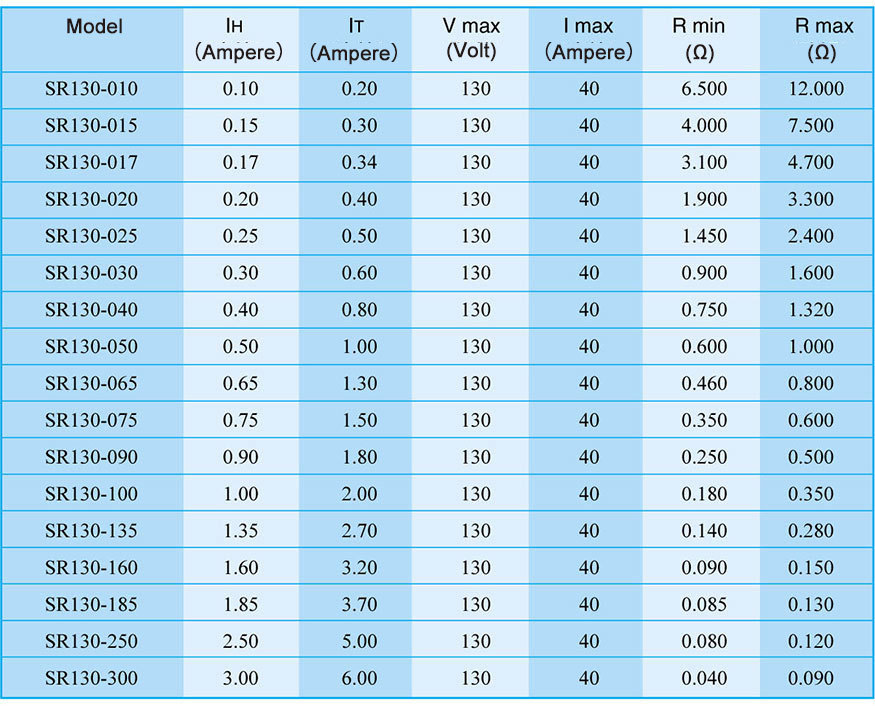

★ Electric Performance(20℃):
★ Action time curve table
★ Electrode Lead and Encapsulating Material
| Shape | Lead Material | Diameter （mm） | Encapsulating Material |
| SR130-010～SR130-065 | Nickel-plated Steel Wire | 0.50 | Flame Retarded Epoxy Resin |
| SR130-075～SR130-135 | Nickel-plated Steel Wire | 0.60 | Flame Retarded Epoxy Resin |
| SR130-160～SR130-185 | Nickel-plated Copper Wire | 0.80 | Flame Retarded Epoxy Resin |
| SR130-250～SR130-300 | Nickel-plated Copper Wire | 0.80 | Flame Retarded Epoxy Resin |
